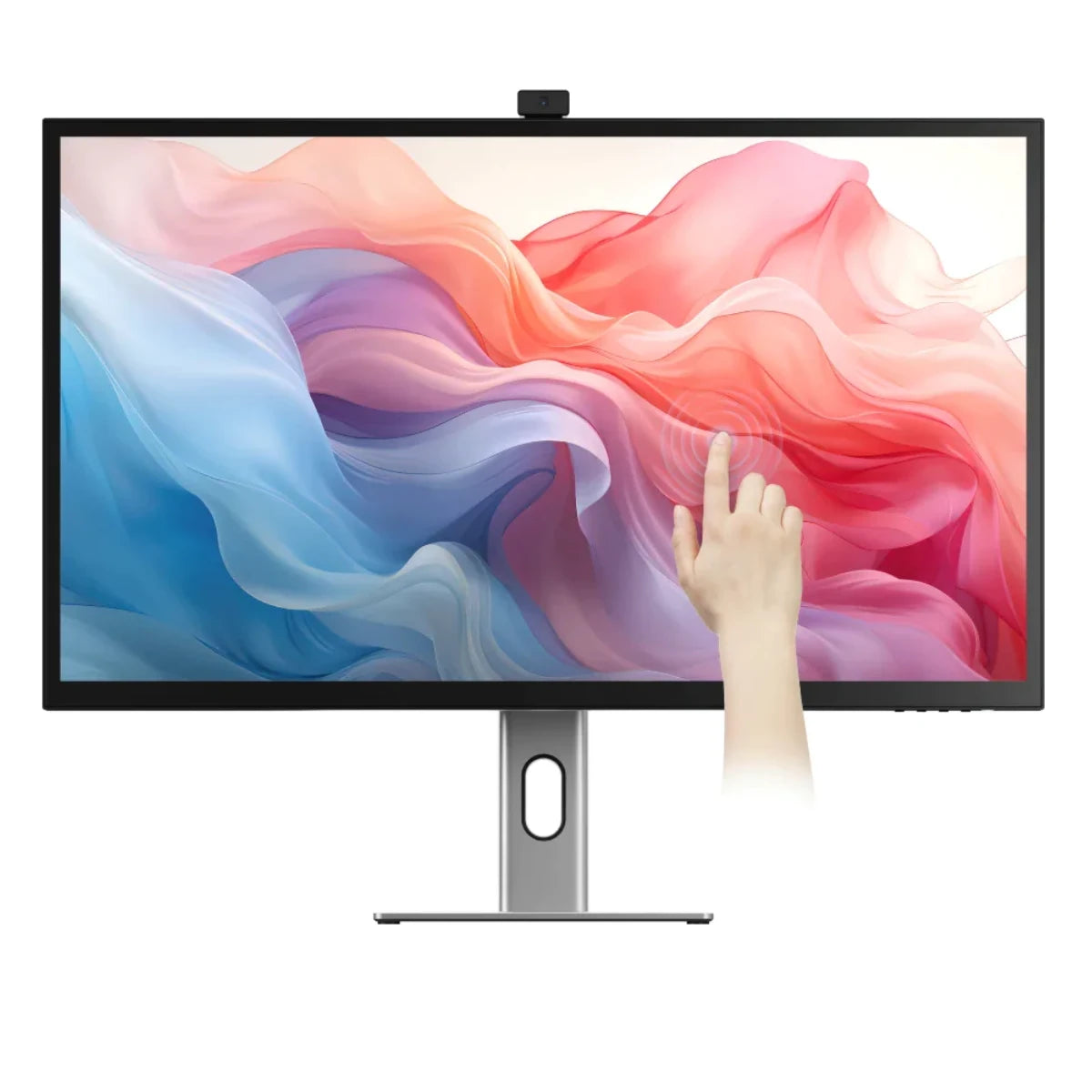

Clarity Max Touch 32" UHD 4K Monitor with USB-C Power Delivery, Webcam and Touch Screen

SKU: 32C4KPDWT
Sale price7,499.99 AED
2-Year Limited Warranty

Based in UAE

14-Day Returns

14 Days Money Back

Secure Checkout

Expert Support

Make an Impact in 32"
The Next Big Thing in Creativity

The technology behind our Clarity monitors hasn’t lost any of its lustre in the transition to a bigger screen. They remain a studio-grade tool for creatives professionals who rely on accurate colours to work.

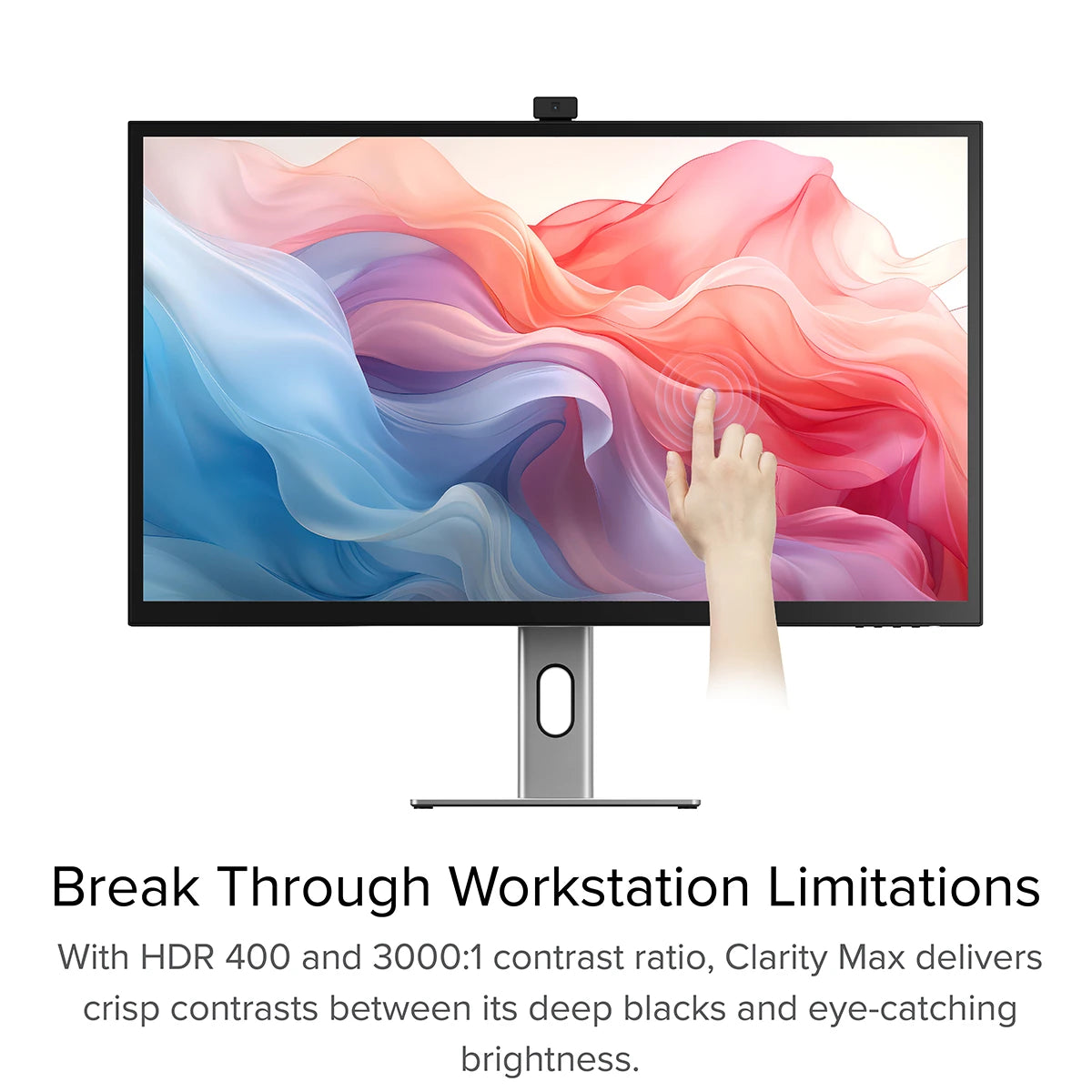

With HDR400 support and a 3000:1 contrast ratio, Clarity Max delivers crisp contrasts between its deep blacks and eye-catching brightness. Offering more than 16 million colours across their 4K Ultra High Resolution display, Clarity Max monitors are the perfect place to realise your next masterpiece.

Your Favourite Canvas Just Got Bigger

With 32” of 4K touchscreen, Clarity Max Touch delivers a desktop navigation experience unlike any other.

Pinch, swipe and sketch away on a screen almost three times the size of the average iPad™, using your fingers or our pressure sensitive Active Surface Stylus (sold separately). Transform Clarity Max Touch into a unique 32” drawing tablet with in seconds with the Clarity Fold Stand (sold separately).

Touch isn’t just an intuitive way to navigate your computer: it’s fun, freeform and spontaneous, helping you get creative on your next project.

See Yourself on The Big Screen

Put your best foot forward with the crystal-clear picture of Clarity Max Pro or Touch’s 8MP retractable webcam. The smart webcam automatically slides back into the monitor when it’s not in use, preventing you from sharing anything you didn’t mean to.

Built for Touch

Quick and easy shortcuts, like swiping Clarity’s lower right corner with two fingers to access its touch menu, can completely change the way your navigate your favourite apps.

Customisable Controls for Every App

With our Clarity Touch drivers for macOS, it’s fast and easy to configure new touch controls for your favourite apps, letting you do more without reaching for your keyboard shortcuts.

For example, you could set “Swipe Up with Two Fingers” to add a new MIDI Track in Ableton Live or create a new masking layer in Photoshop. With Clarity Touch, you’re in control.

Perfect Colour for Work and Play
Connect to Creativity with a Single Cable

Sitting at the centre of your studio, Clarity Max Touch connects your computer to everything you need to compose your next piece.

Its rear USB hub connects your computer to its webcam, touchscreen, two USB-A accessories, 65W laptop charging and your 3.5mm speakers or headphone – all with the same USB-C cable you’re using for video.

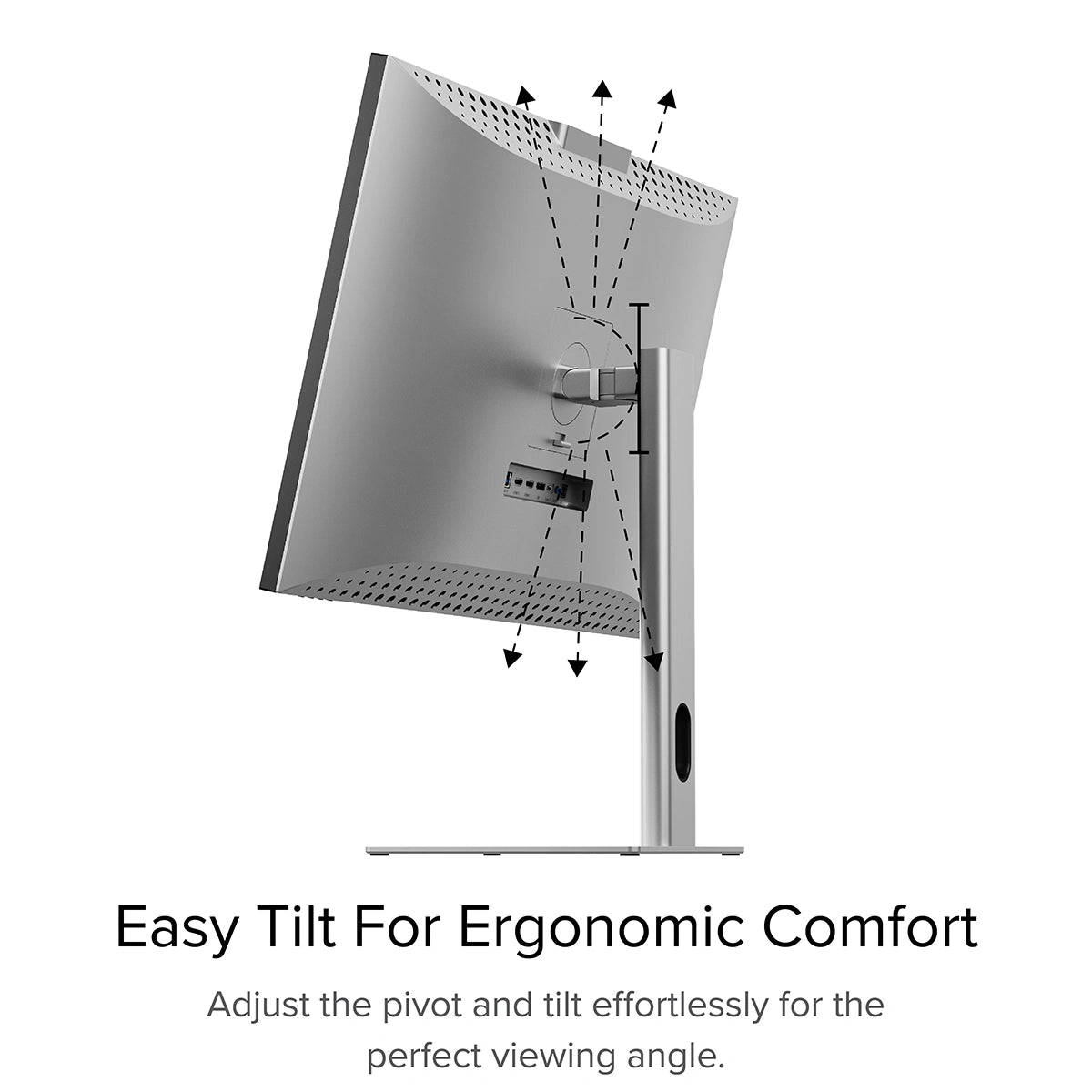

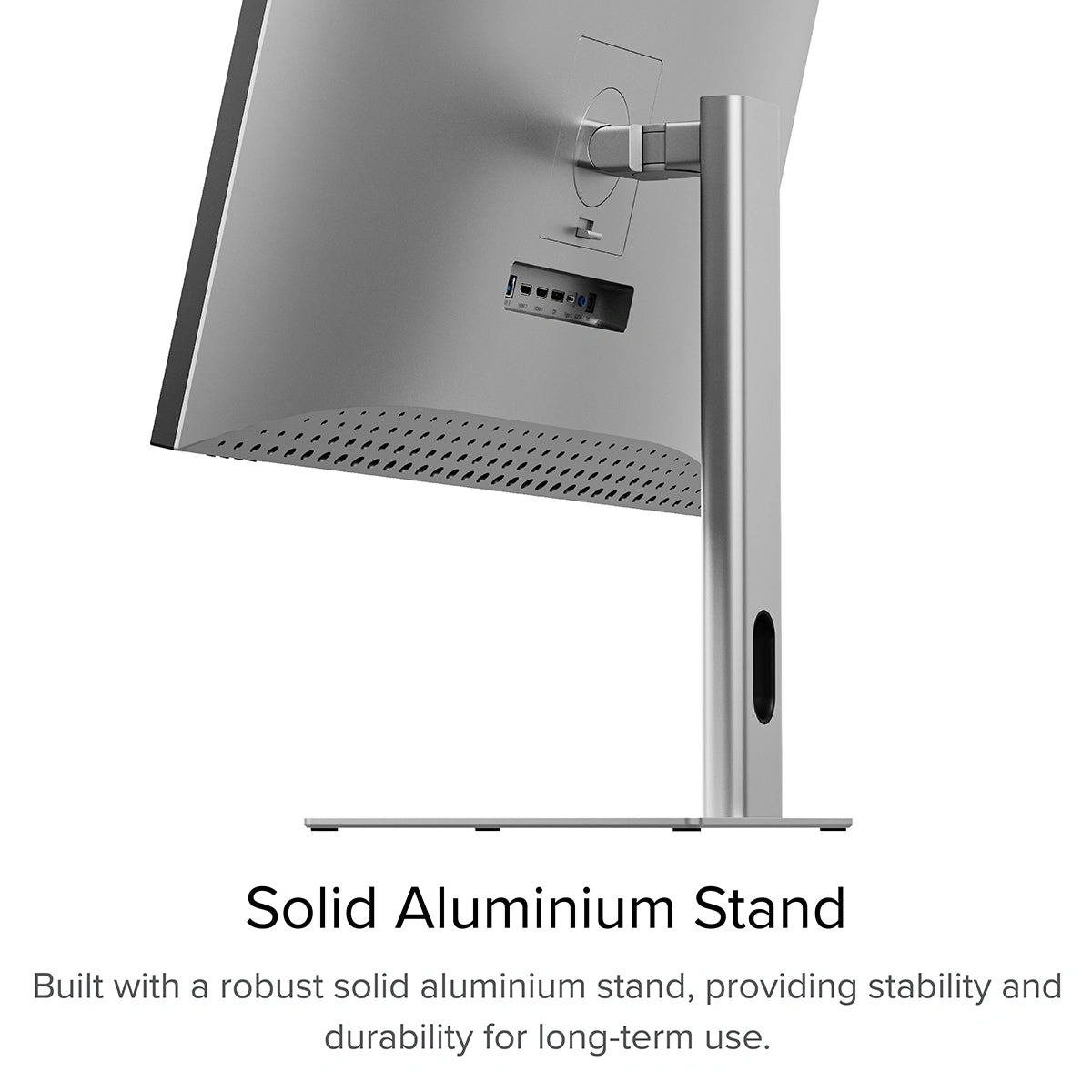

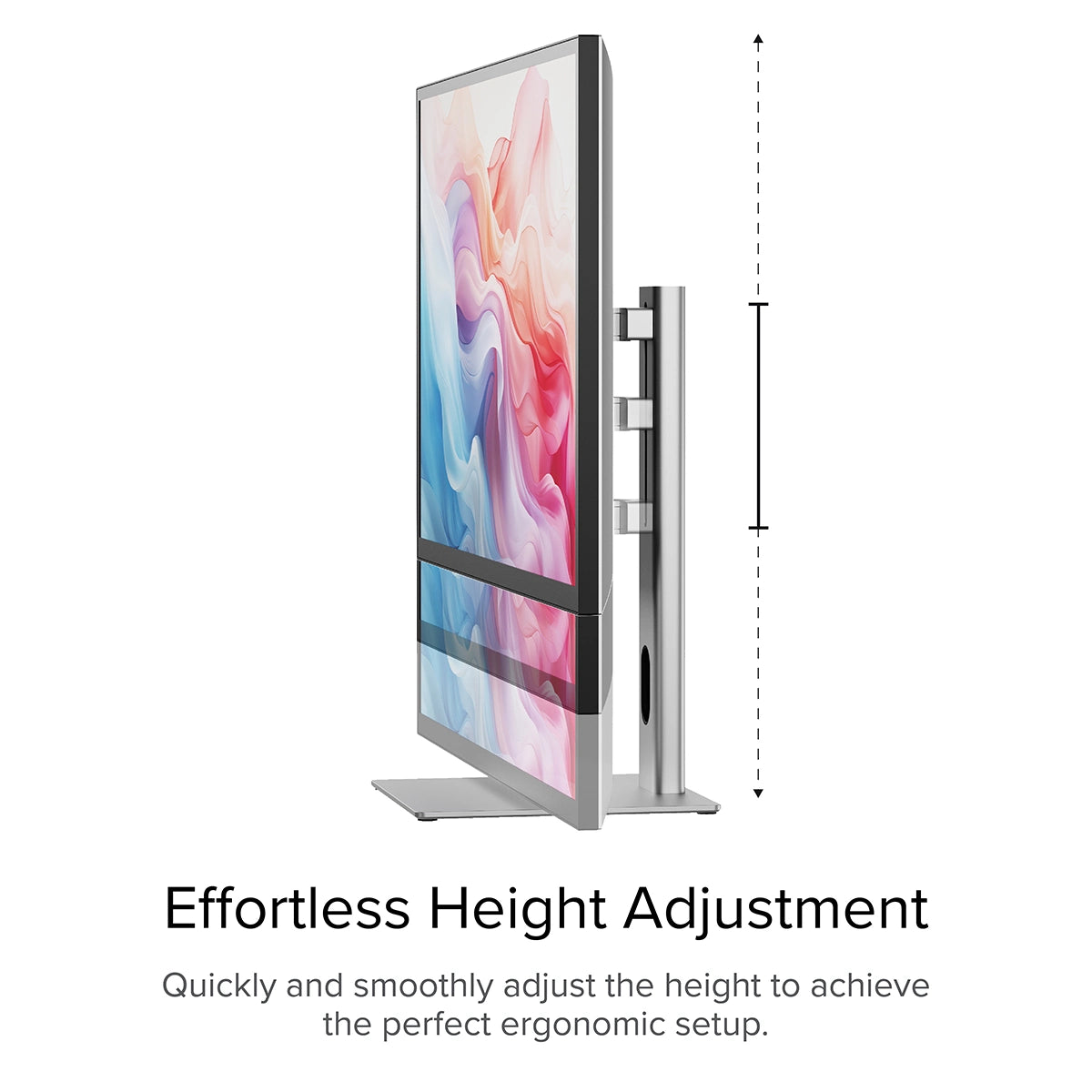

Raise, Lower, Tilt and Twist

Our aluminium stand makes it easy to position Clarity Max exactly where you need it, letting you raise, pivot, tilt and swivel the display to fit your desk setup and maximise ergonomic comfort.

With Clarity Max, it’s easy to show off your latest design to colleagues, with wide 178° viewing angles across its broad 32” screen.

Compatible with 100x100mm VESA Mounts (such as our Clarity Fold Stand and Glide Monitor Arms), Clarity Max is an easy inclusion in any setup, despite its size.

Dimensions and Range of Motion
More Space For What Matters
Accessories
Do More With Clarity
Shop Now
Guides
Installing Clarity’s macOS Touchscreen Drivers
Learn More
Guides
Explore Our Range
Shop Now
Frequently Asked Questions

General

How big is Clarity Max? How high and low can it go on its stand?
See the diagrams below for Clarity Max’s range of motion with the included stand.
What’s the difference between Clarity Max, Clarity Max Pro and Clarity Max Touch?
Clarity Max is just a monitor, while Clarity Max Pro features our smart webcam, while Clarity Max Touch features the webcam and a touchscreen.
Does Clarity Max support VESA Mounting?
Yes, Clarity Max supports 100x100mm VESA mounts and includes compatible mounting screws.

As a larger monitor, it’s important to check your monitor stand will support Clarity Max to avoid damaging your monitor.

Clarity Max is 32”, weighs 6.5kg without the stand and measures 725*250*606mm (LxDxH).
How do I use Clarity’s USB-A ports?
In order for your computer to access devices you've plugged into Clarity's two rear USB-A ports, you need to ensure your computer is:

Connected to Clarity via either:
  1. Clarity's USB-C port
  2. Clarity's USB-B port

  3. Clarity’s "Active USB" mode is set to the same USB port you've connected to your computer.

    To change Clarity's "Active USB" mode, navigate to "USB Switch" in the "Other Settings" menu of Clarity's main menu.

    For example: if your computer is connected to Clarity via USB-C, you would select "Type-C" in the "USB Switch" menu.
How do I recharge my laptop with Clarity?
To charge your laptop via Clarity (up to 65W), simply connect it to the monitor via a USB-C cable which supports the required wattage.

However, it does need to plug into a USB-C port compatible with PD (Power Delivery) on your computer.

These can sometimes be identified by the presence of a battery icon next to the port on your laptop, but often you’ll need to check the user manual or manufacturer’s website to figure out which USB-C ports support PD.

All Thunderbolt 3 and 4 ports support PD.
Are Clarity Max monitors compatible with Windows, macOS and Chromebooks?
Yes, Clarity’s Webcam, Charging and Touch features have been tested with all three operating systems and work great.

In order to get multitouch working on macOS, you’ll need to install our macOS drivers.

Clarity’s Webcam hasn’t been tested with legacy versions of Windows and macOS.

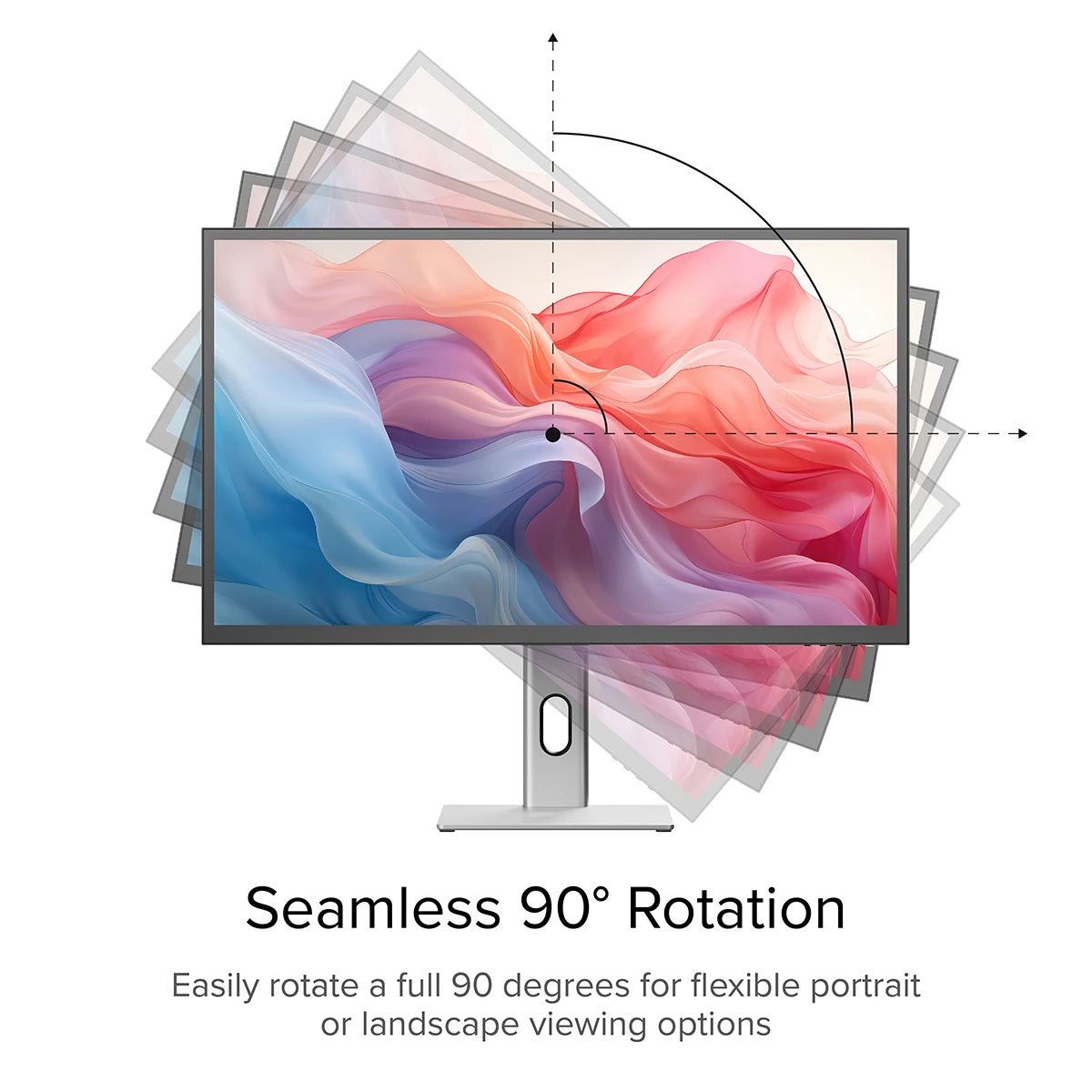

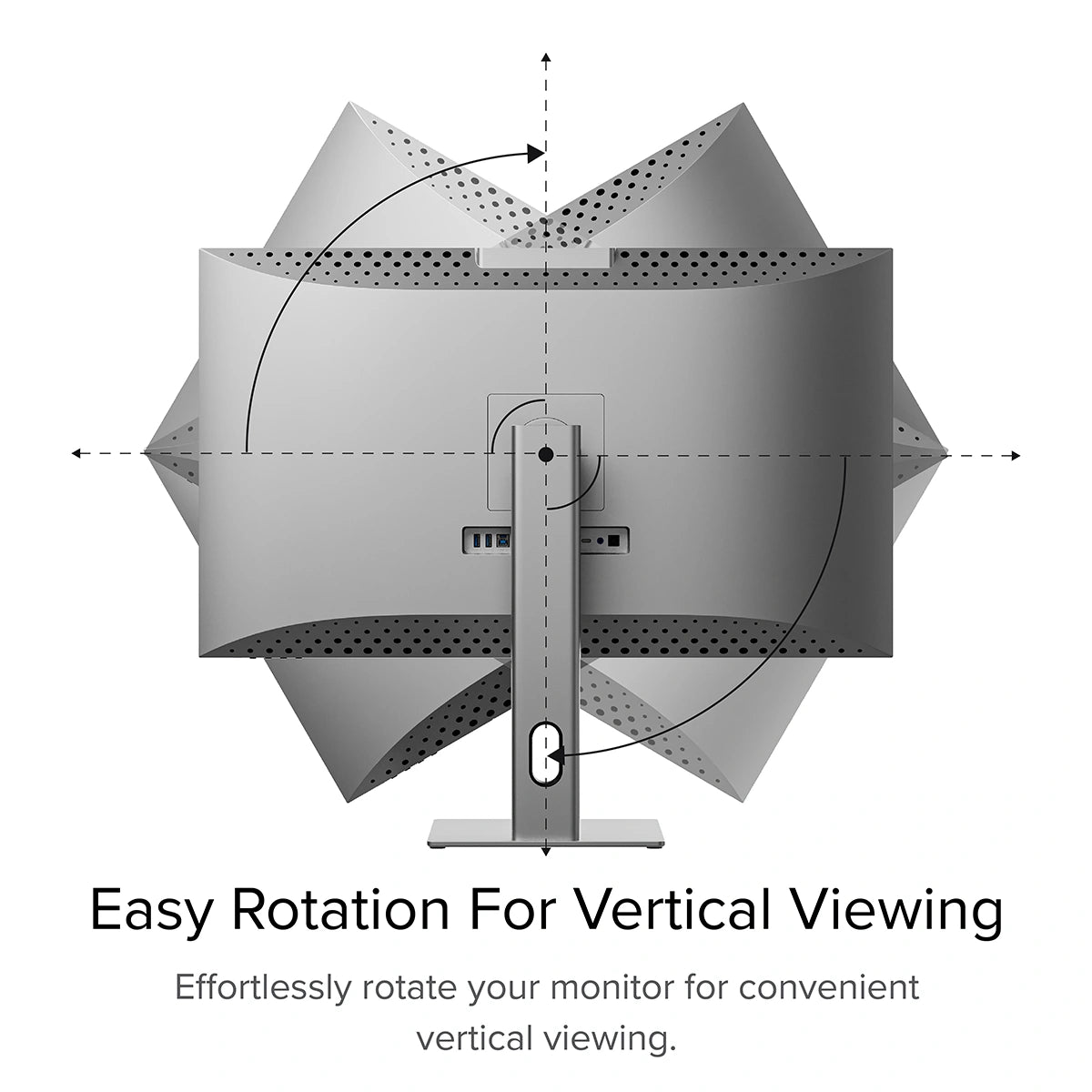

How do I rotate a Clarity Max screen to Portrait?
To rotate your Clarity Max’s screen, you need to:



1. Ensure the monitor is at its maximum height on the stand.
2. Tilt the monitor as far as it can go by pulling its bottom edge towards you.

You can then slowly rotate the monitor without the corner hitting the desk.

Clarity Max’s screen won’t automatically rotate after you move the monitor. To rotate the picture, follow these steps:

Mac

1. Open System Settings -> Displays.

2. Click on your Clarity Max and change ‘Rotation’ to 90° or 270°, depending on which way you turned it.

Windows

1. Open Settings -> System - > Display.

2. Click on Clarity Max, and under the ‘Scale & layout’ menu, switch ‘Display Orientation’ to Portrait or Portrait Flipped, depending on which way you turned it.

Touchscreen

Which kinds of stylus can I use with Clarity Max Touch?
Clarity Max Touch is compatible with Microsoft Pen Protocol (MPP) 2.0 Styluses – such as our ALASS Clarity Acitve Stylus
Does Clarity Touch support tilt and pressure sensitivity?
Yes – when used with a compatible with Microsoft Pen Protocol (MPP) 2.0 Styluses – such as our ALASS Clarity Acitve Stylus
(macOS) I can’t get touch gestures, or a stylus to work!
To unlock the full capabilities of Clarity for Mac, you need to install our Clarity Touch macOS drivers.
(macOS) My touch input is controlling the wrong screen!
After installing our Clarity Touch macOS drivers., click on the “UPDD Daemon” icon in your top bar, then select “Identify” and follow the on-screen instructions.
(Windows 10/11) My touch input is controlling the wrong screen!
Sometimes, Clarity Max Touch’s input will be applied by your computer to another display instead of Max Touch.

Moving your mouse onto Clarity before using the touchscreen usually resolves this issue.

Solution - Windows If you’re using Windows 10 or 11 with multiple displays you can specify which monitor you want touch input to apply to, which saves you having to mouse over to that display before using touch.

To do this, launch Control Panel, click “Hardware and Sound” then ‘Calibrate the screen for pen or touch input’ from the menu.



Select “Setup”, choosing “Pen Input” if you’re using an active stylus or “Touch Input” if you’re using your fingers or a capacitive stylus, then follow the onscreen instructions.



If completing this process doesn’t resolve your issue, try setting up for the other kind of input.

Troubleshooting

When I wake my computer from sleep mode, Clarity doesn’t come back on.
In some cases, it’s possible for Clarity not to recognize the wake-up signal from a connected computer. This issue occurs most often when Clarity is connected to a computer through a dock.

To resolve the issue, restart Clarity by pressing the power button twice – it should recognize the connected device as part of its boot-up sequence.

If this issue persists, we recommend trying the following steps to isolate the issue:
  • 1. Connect Clarity directly to your computer
  • 2. Try connecting with a different cable or port.
    • ie. Use DisplayPort instead of USB-C
  • 3. Update your computer’s operating system.
If your problem reoccurs and these these steps do not help resolve it, please contact ALOGIC support (support@alogic.co).

Webcam

What resolution is Clarity’s webcam?
Clarity Max Pro/Touch’s webcam has an 8MP sensor, or 8 million pixels. This is roughly equivalent to a 4K image.
Does Clarity Pro’s webcam have a microphone?
Yes, Clarity Pro’s webcam includes an array of four microphones to capture sound.
What programs does Clarity Pro’s smart webcam support?

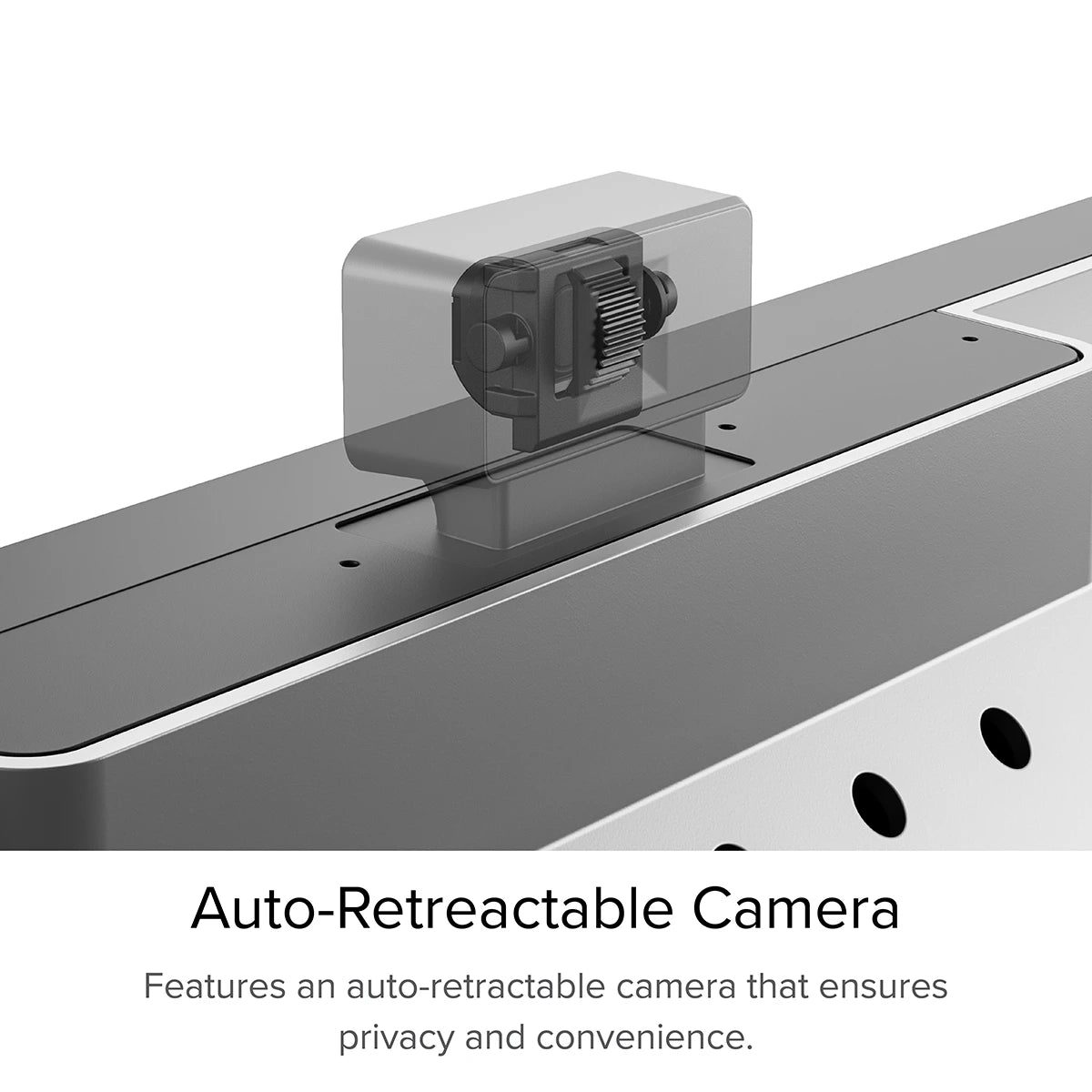

Clarity Pro’s smart webcam slides up and down whenever your computer’s operating system (macOS, Windows, Chrome) attempts to access a webcam feed, not specific integrations with each application.

As a result, the webcam will work with any program attempting to access a webcam, not just a few popular ones.
How do I adjust the webcam’s framing?
To adjust the framing of your webcam, you first need to slide the webcam up.

Open a program which requires the webcam – on Windows 11 we recommend the “Camera” app or “Photo Booth” on macOS.

Open this application and switch the active camera to Clarity Pro’s – this can be done via the “Camera” menu in Photo Booth or hitting the “Switch Camera” button in Camera – see below.

Once you’ve activated Clarity Pro’s webcam, it will slide up out of the monitor. You can now adjust its vertical framing using the scroll wheel on the rear of the camera.

Display

How accurate are Clarity Max’s Colours?
Clarity Max has quite accurate colours, 100% coverage in the key gamuts.

The stats listed below are the average colour accuracy for Clarity Max, although be aware that each panel’s colour

Although each monitor is varies slightly, below are the average colour accuracy stats for Clarity Max.


Clarity Max:
  1. Gamut Coverage (NTSC): 91%
  2. Gamut Coverage (DCI-P3): 96%
  3. Gamut Coverage (SRGB): 99.9%
  4. Gamut Coverage (Adobe RGB): 97%
  5. Gamut Coverage (BT2020 CIE1976): 77%
  6. Average ΔE: <1


Clarity Max Pro and Clarity Max Touch:
  1. Gamut Coverage (NTSC): 95%
  2. Gamut Coverage (DCI-P3): 102%
  3. Gamut Coverage (SRGB): 98%
  4. Gamut Coverage (Adobe RGB): 110%
  5. Gamut Coverage (BT2020 CIE1976): 76%
  6. Average ΔE: <1
How can I calibrate Clarity?
Clarity comes with several factory calibrated colour temperatures and video modes.

If you wish to further calibrate your monitor, you will need to use a third-part calibration tool, such as a Calibrite/Sypder.
Does Clarity Max support HDR?
Yes, Clarity, Clarity Pro and Clarity Max Touch all support HDR 400.
Does Clarity support automatic source switching?
No. While Clarity will automatically switch to the only active source, it can’t switch between two active video inputs based on which has current activity with an external switcher, like a KVM.
Does Clarity have a Picture in Picture function?
Yes, Clarity supports a variety of picture-in-picture modes for displaying multiple video sources at the same time.
Specifications
  • Part No.: 32C4KPDWT
  • Barcode (EAN): 9350784028471

User Interface

  • Power Input: DC 19V 7.89A, 150W (Max)
  • Output: USB-C (Connection for Video (DP Alt Mode required), 65W Laptop Charging and Data), 2x HDMI 2.1, DisplayPort 1.4, 2x USB-A (5Gbps, 7.5W Charging, For Accessories), 3.5mm Audio, USB-B (Connects computer to USB-A and Audio ports)

Power Adapter

  • Input: AC 100-240V~, 50/60Hz
  • Output: DC 19V 7.89A, 150W (Max)
  • USB PD Power Delivery: Up to 65W USB-C Laptop Charging
  • Colour Accuracy: (NTSC):102% | (DCI-P3): 113% | (SRGB): 142% | (Adobe RGB): 107% | (BT2020 CIE1976) 77% | Average ΔE: <1
  • Backlight: LED
  • Aspect Ratio: 16:9
  • Brightness: 320cd/m2 (Typ.)
  • Refresh Rate: 60Hz
  • Panel: IPS
  • Viewing Angle: 178°(H) / 178°(V)
  • Webcam: 8MP (4K)
  • Touchscreen: 10 Point Multitouch, One Glass Solution (OGS)
  • Stylus Compatibility: Microsoft Pen Protocol (MPP) 2.0, Up to 4096 levels of Pressure Sensitivity

Physical Characteristics

  • Product Dimensions: 726mm (L) x 481mm (D) x 250mm (H)
  • Material: ABS, Glass, Aluminium
  • Weight: 6.5kg without stand
  • VESA Mount Compatible: FDMI MIS-D 100mm
  • Screen Size: 32”
  • Stand Dimensions: Base: 240mm wide x 250mm deep. Front of the monitor sits 35mm from the front of the base.
  • Monitor Height: 420mm. Height between desk and monitor: 50-180mm
  • Package Includes: Clarity Max 32” Monitor, Power Adapter, User Manual, DisplayPort to DisplayPort Cable, HDMI to HDMI Cable, USB-C to USB-C Cable (USB 3.2 - Gen 2), USB-A to USB-B Cable
  • Warranty: 2 Year
